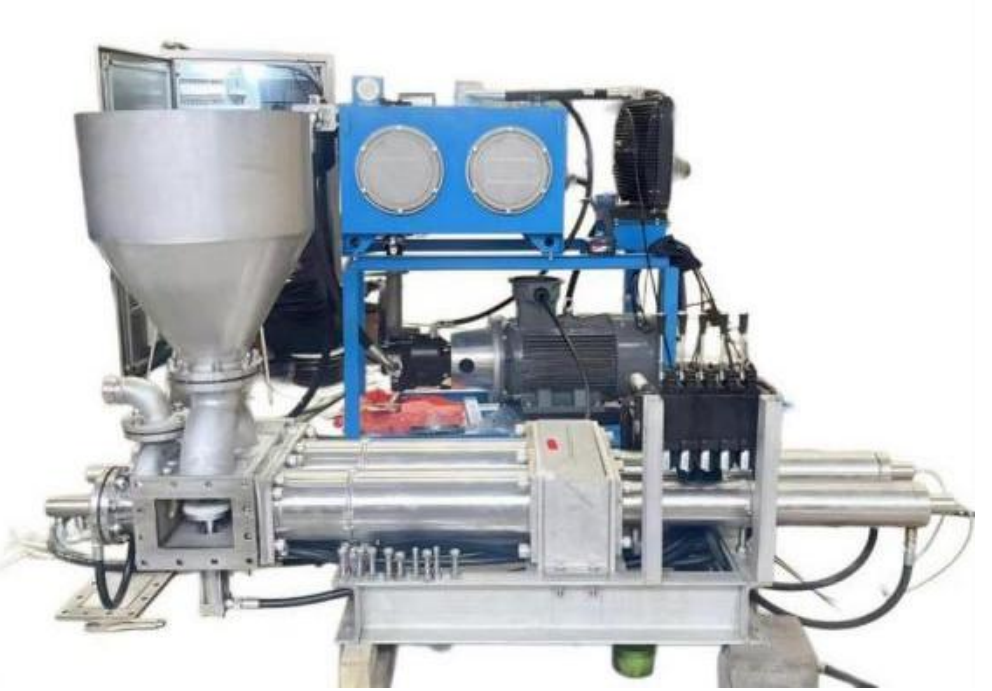

Traditional screw pumps often struggle with safety hazards and instability when handling high-viscosity materials like latex matrix. BGRIMM’s BK-HDP Series Piston Pump offers a revolutionary solution:

1. Industry First: Utilizing an active control technology for inlet/outlet valves, specifically engineered for non-Newtonian fluid dynamics.

2. Enhanced Performance: Effectively overcomes the impact of material viscosity and pressure on valve operation, ensuring stable and safe delivery.

3. Robust Design: Features a simplex piston structure with hydraulic cylinder support for reliable, continuous feeding and discharging.

Our BK-HDP series is purpose-built for applications such as emulsion explosive ground stations and mixed loading vehicles.

Technical Power:

Available in models BK-HDP100 to BK-HDP250, our pumps offer:

Power: 15 Kw to 37 Kw               Flow Rate: Up to 23.5 m³/h               Capacity: Up to 30 t/h
